Preliminary design

Fourteen-Stall Barn

A working horse barn: fourteen stalls, feed and wash bays, and living quarters at one end.

About the project

Preliminary drawings for a working horse barn: fourteen stalls either side of a 14-foot passage, two feed rooms, wash and grooming stalls, a tack room, laundry and utility, with living quarters and an office at the entrance end.

Stage: Preliminary design
Sheets: 3

The project

Every view, 3 in all

Select any image to see it whole.

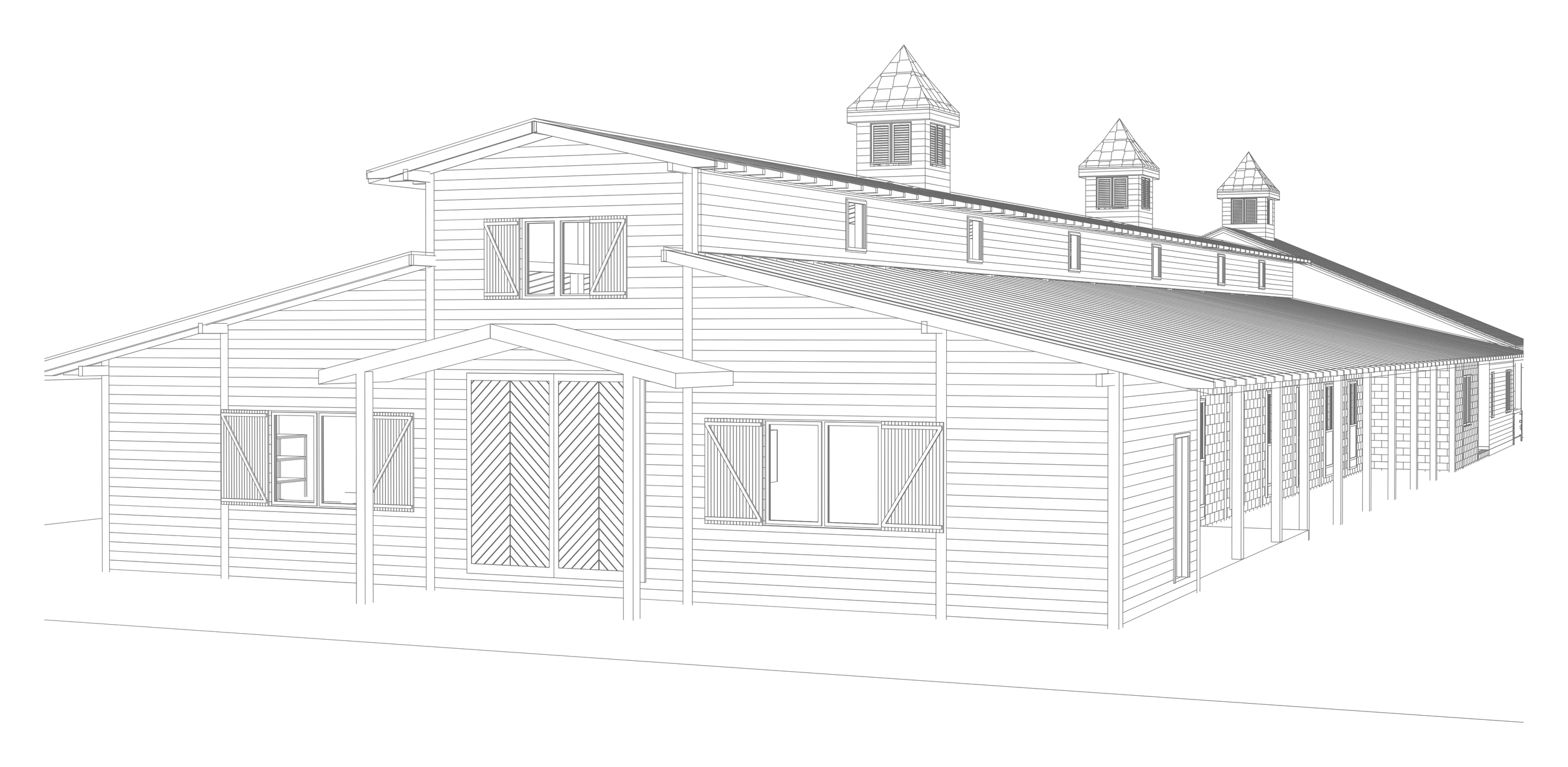

Fourteen-stall barn — perspective
The barn from the model: the entrance gable, cupolas and the stall wing

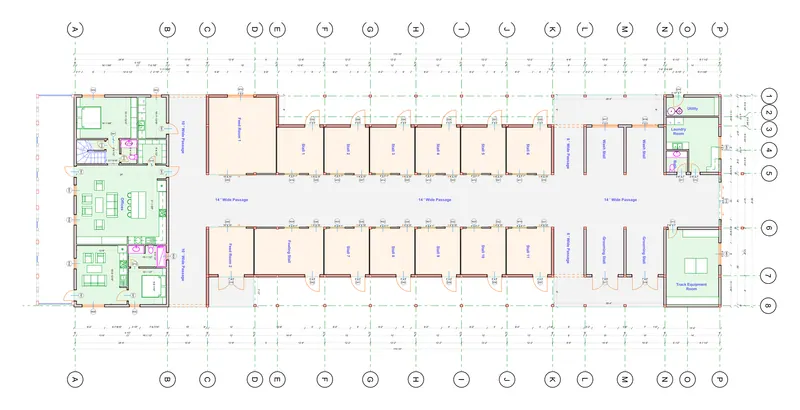

Fourteen-stall barn — ground floor plan
Fourteen stalls on a 14-foot passage, feed rooms, wash and grooming stalls, and the living quarters

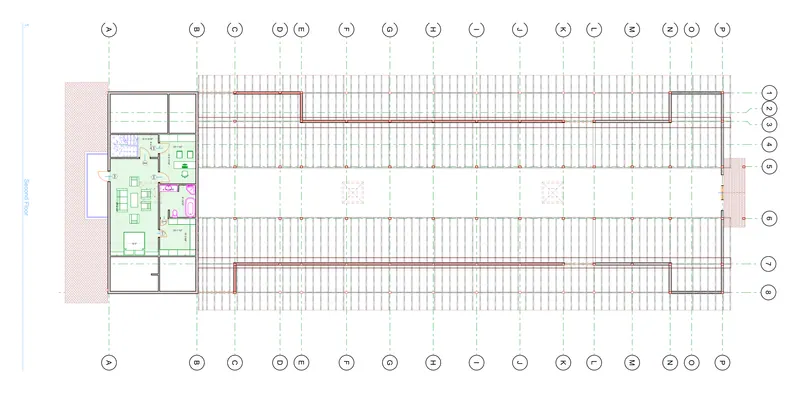

Fourteen-stall barn — upper floor and roof framing
The upper floor of the living quarters, and the rafters over the stall wing
