Planning drawings

Foxhole House II

A second house for a returning client, on a new plot: plans, four elevations, sections and cut-away views of each floor.

About the project

The client behind the first Foxhole House came back a couple of years later with a new plot and a smaller brief. This is the preliminary submission for it: basement, ground and first floors and an attic, four elevations, and two sections through the stair and the living spaces.

Cut-away views of each floor, taken from the model, show the layout in three dimensions.

Client: Returning — after the first Foxhole House
Sheets: 5

The project

Every view, 5 in all

Select any image to see it whole.

Foxhole House II — section and exterior
Cut through the living spaces, and the house in its setting

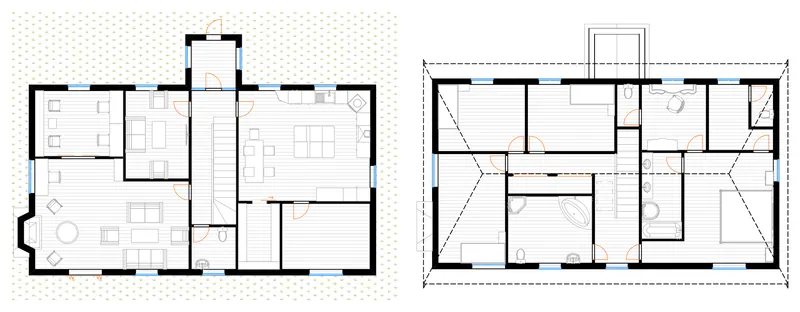

Foxhole House II — ground and first floor plans
Ground floor with the living rooms; first floor with the bedrooms under the hipped roof

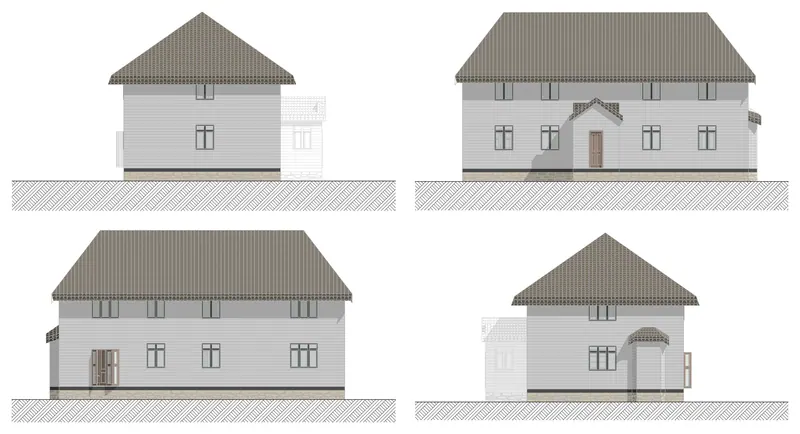

Foxhole House II — four elevations
All four sides, weatherboard over a stone plinth
Foxhole House II — section through the stair
Through the stair, from the basement to the roof

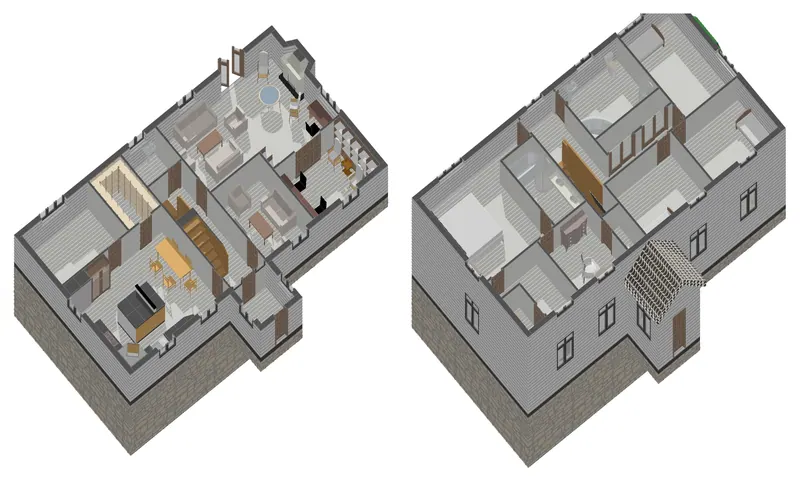

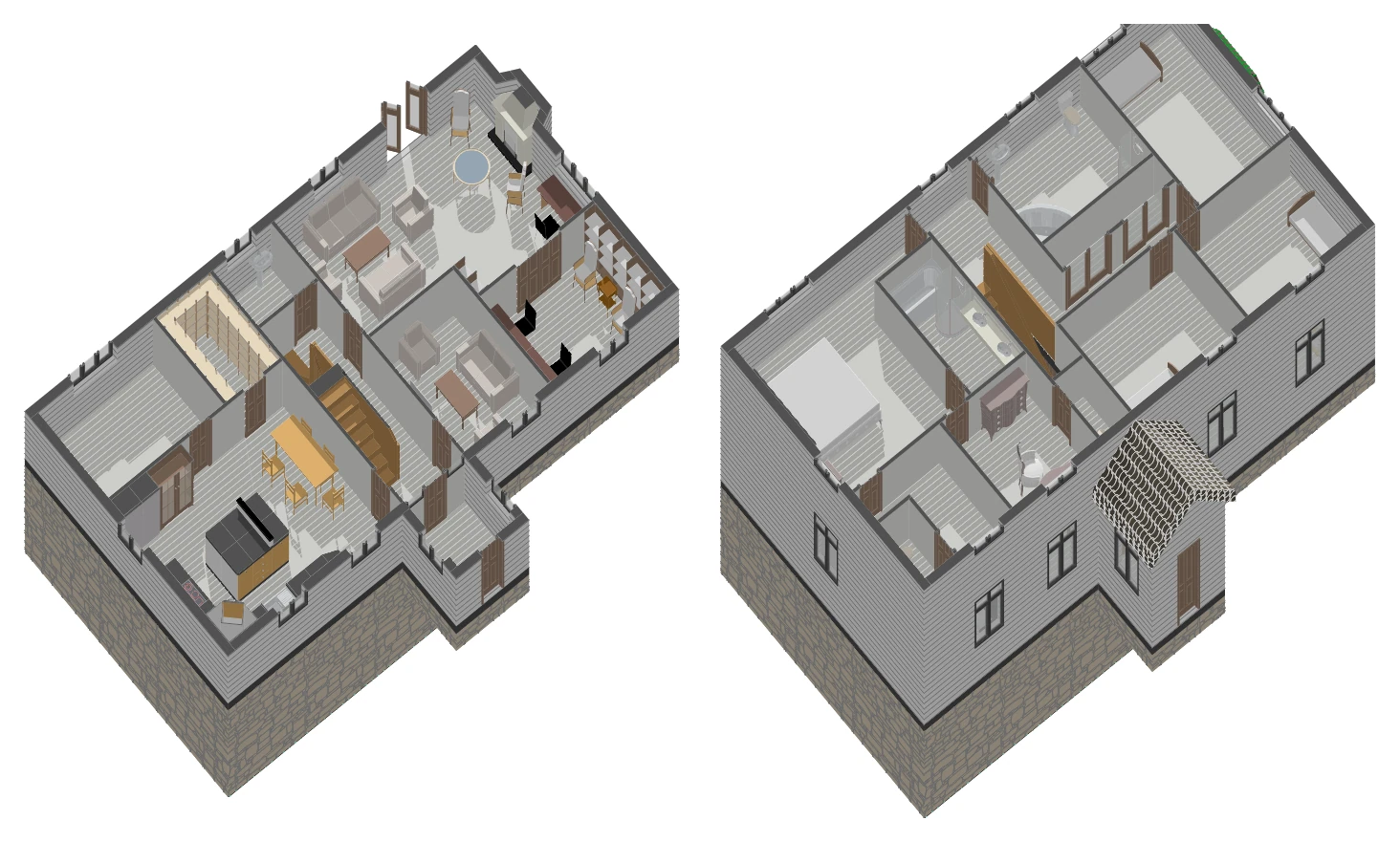

Foxhole House II — cut-away floor views
Each floor lifted off and seen from above, furnished
