Residence Renovation

Six rooms, each drawn four ways — demolition, after demolition, new work and the finished plan — with lighting, plumbing and the schedules behind them.

About the project

A whole-house renovation, organised as six chapters: the master bath, the bedrooms and hall, a second bathroom, the stair, the kitchen and bar, and a third bathroom. Each room is drawn four ways on one sheet — what comes out, the shell after demolition, the new work, and the finished plan — so a contractor can price and sequence it without guessing.

Lighting, electrical and plumbing get their own sheets per room, and every wall, door, light and fitting that is removed or added is scheduled from the model.

Role: BIM manager
Sheets: 15

The project

Every view, 10 in all

Select any image to see it whole.

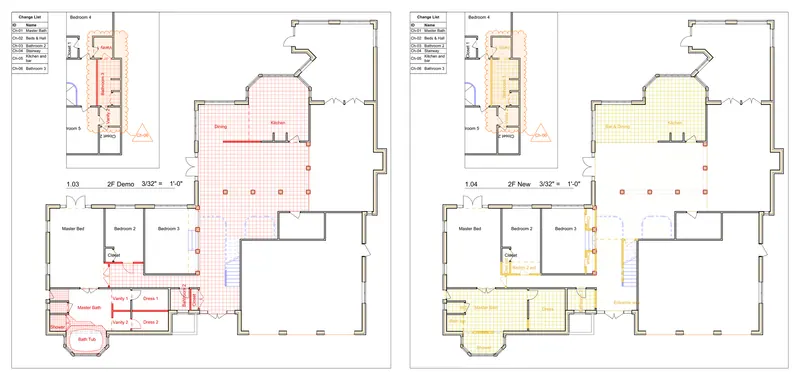

Residence renovation — demolition and new plans
The whole first floor twice: what comes out in red, what goes in in yellow

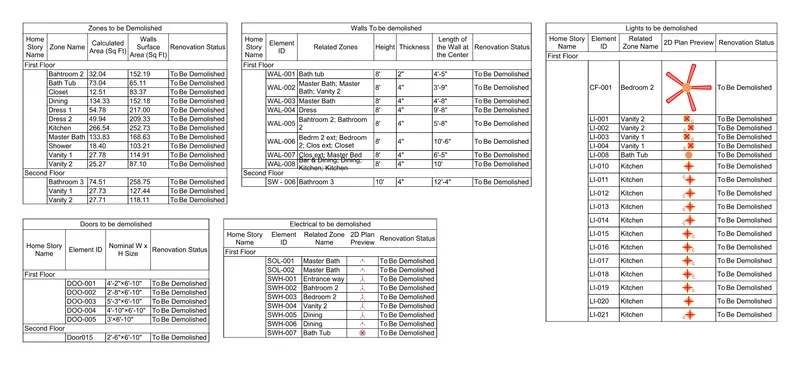

Residence renovation — demolition schedules
Every zone, wall, door, light and socket to be removed, with sizes and areas

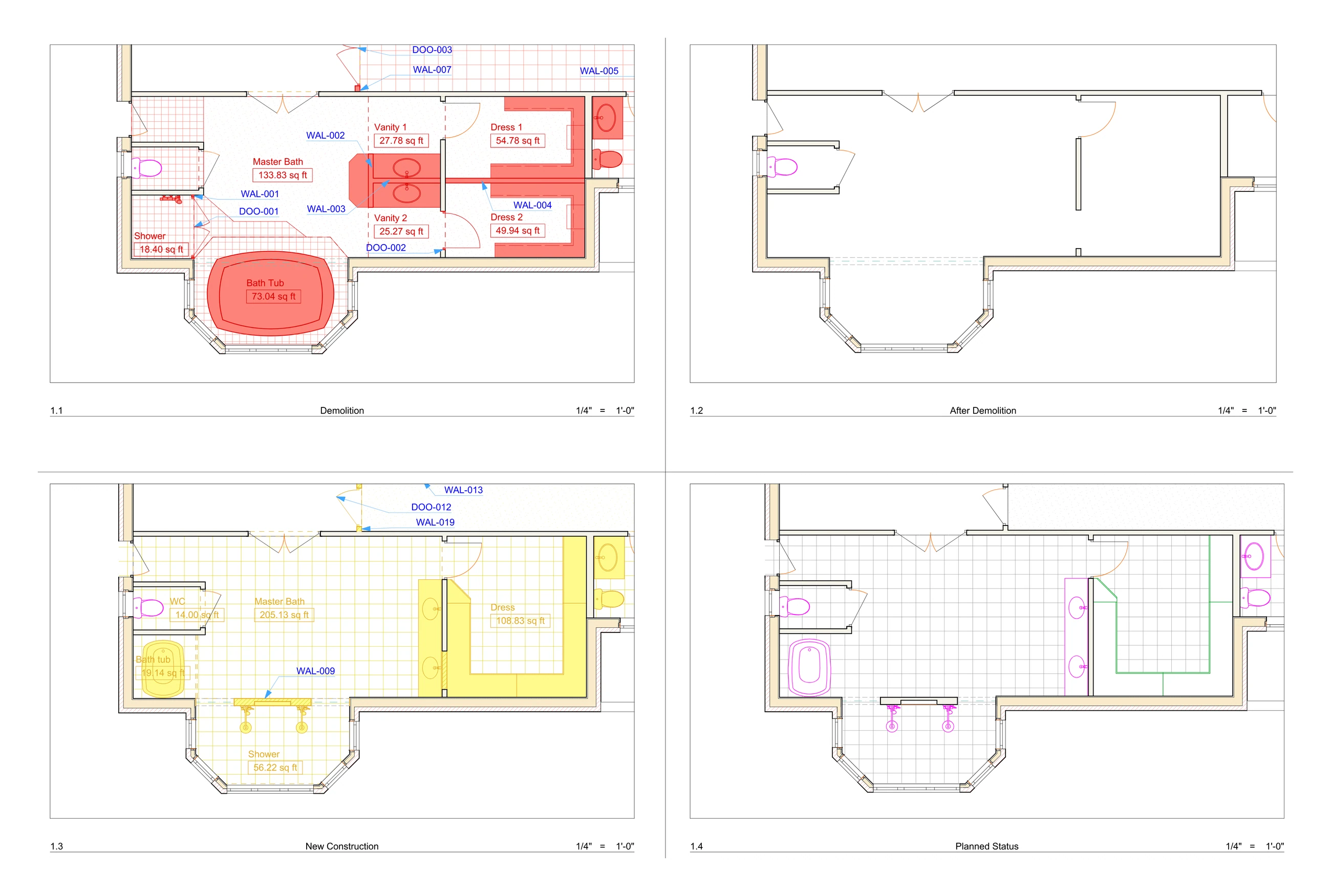

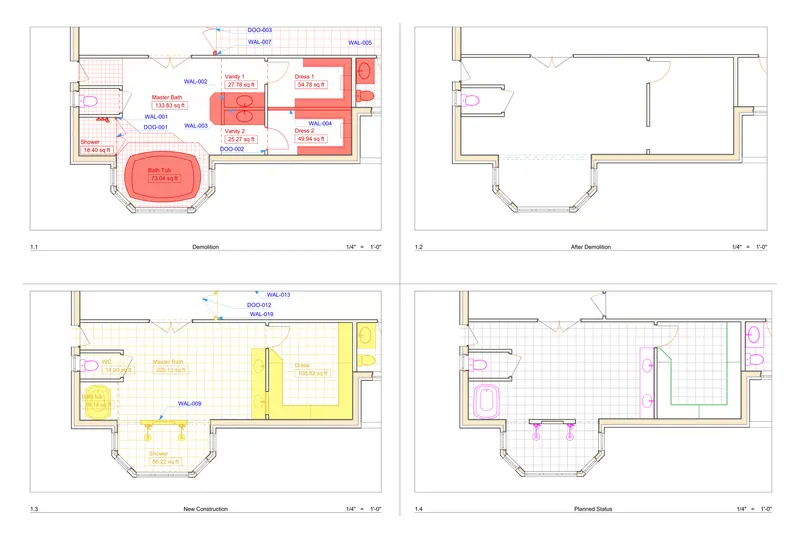

Residence renovation — master bath
Demolition, after demolition, new work and the planned layout on one sheet

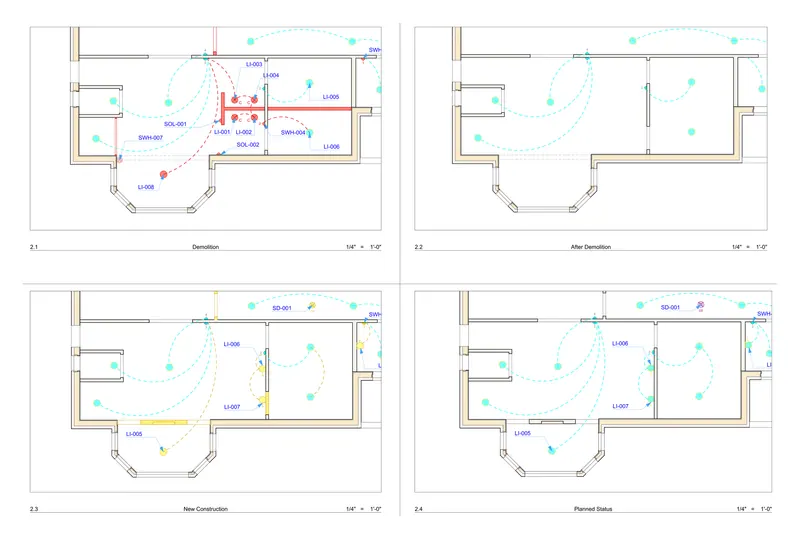

Residence renovation — master bath lighting
Fittings removed, then the new downlights and switching

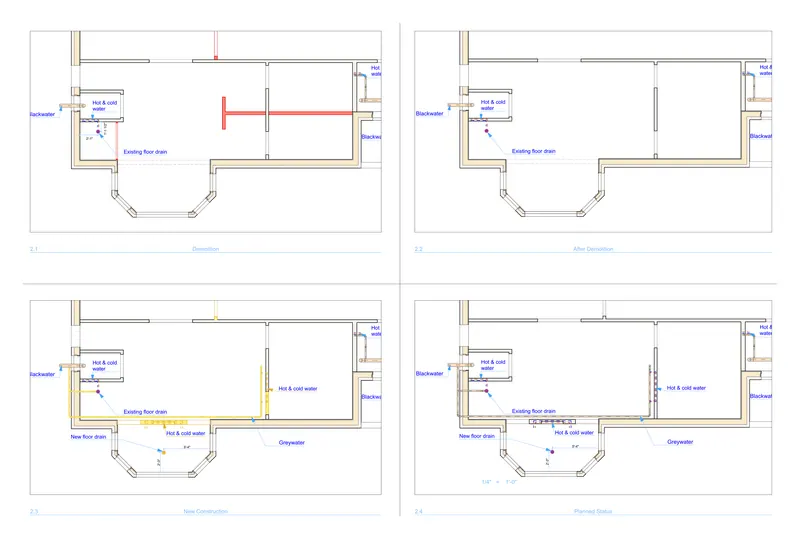

Residence renovation — master bath plumbing
Existing drains and supply, then the new hot and cold, waste and grey-water runs

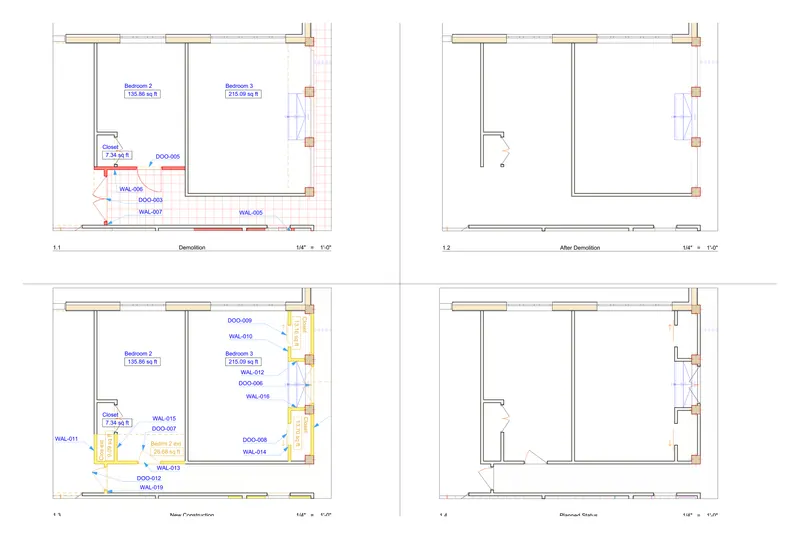

Residence renovation — bedrooms and hall
Bedrooms 2 and 3 and the closet — the same four stages

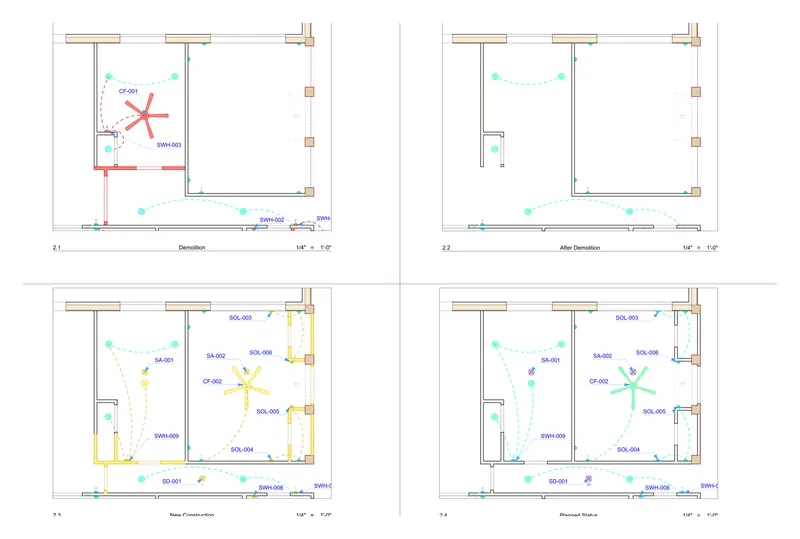

Residence renovation — bedrooms lighting
Ceiling fans, downlights and switching, before and after

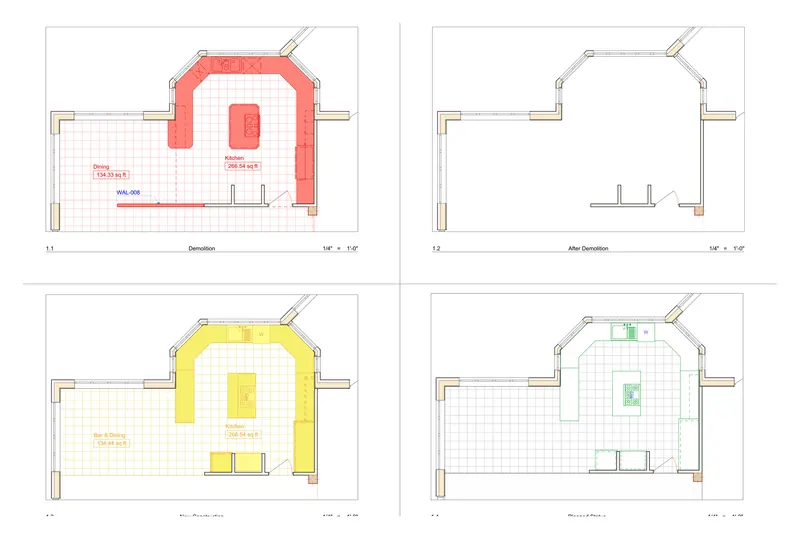

Residence renovation — kitchen and bar
The old kitchen out, a new island kitchen and bar in

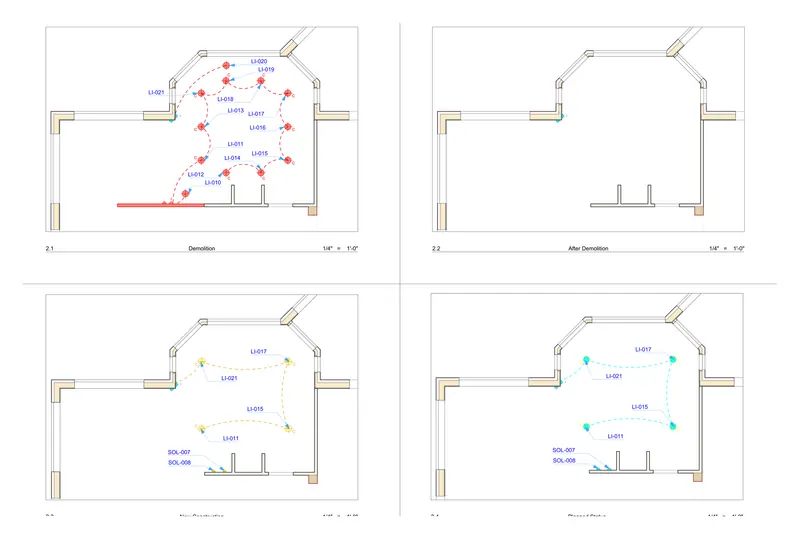

Residence renovation — kitchen lighting
Old fittings out, new lighting over the island and bar

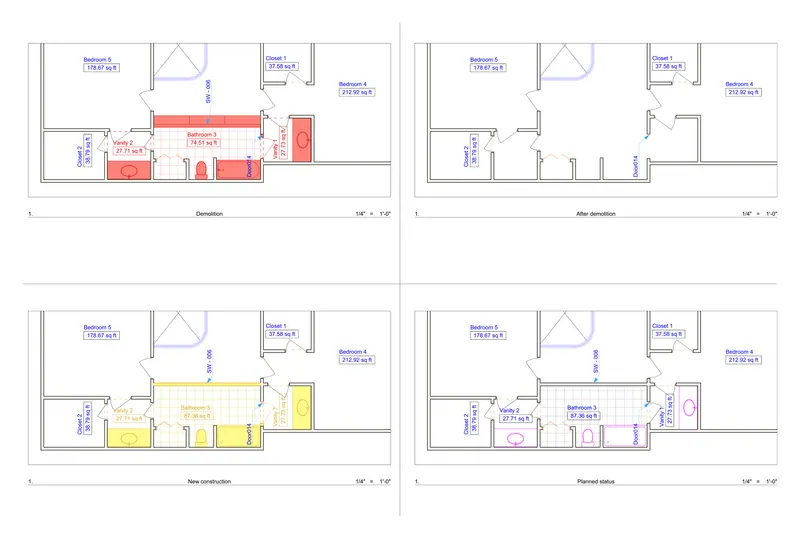

Residence renovation — bathroom 3
Bathroom 3 and its closets, between bedrooms 4 and 5 — the same four stages
